Freedom 60

Exploria Freedom 60

Compact 2 berth 6m. Designed for comfort with rear lounge, shower and toilet.

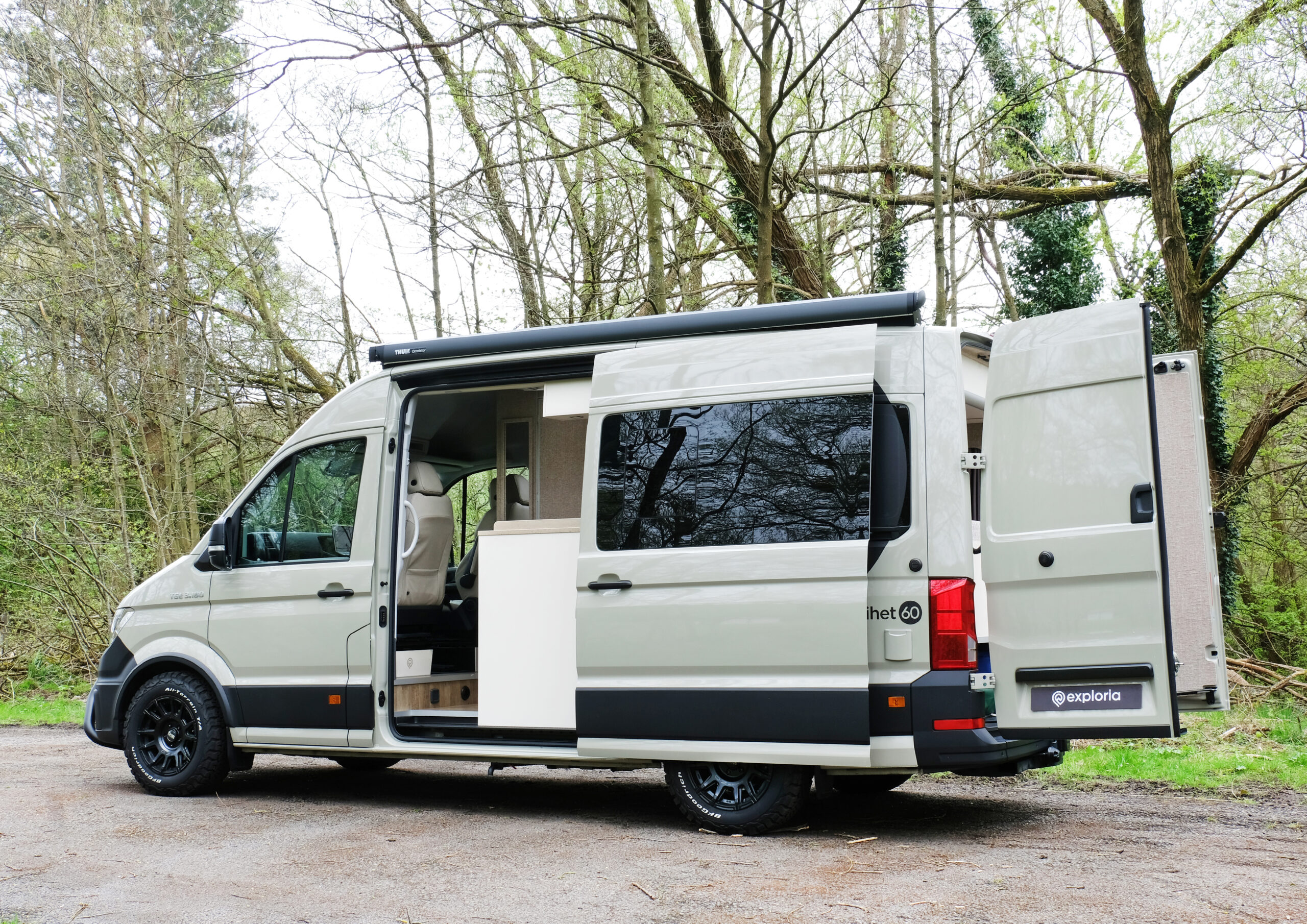

The Freedom 60 has been developed as a compact, high-specification two-berth motorhome designed to remain within the 3.5T weight limit.

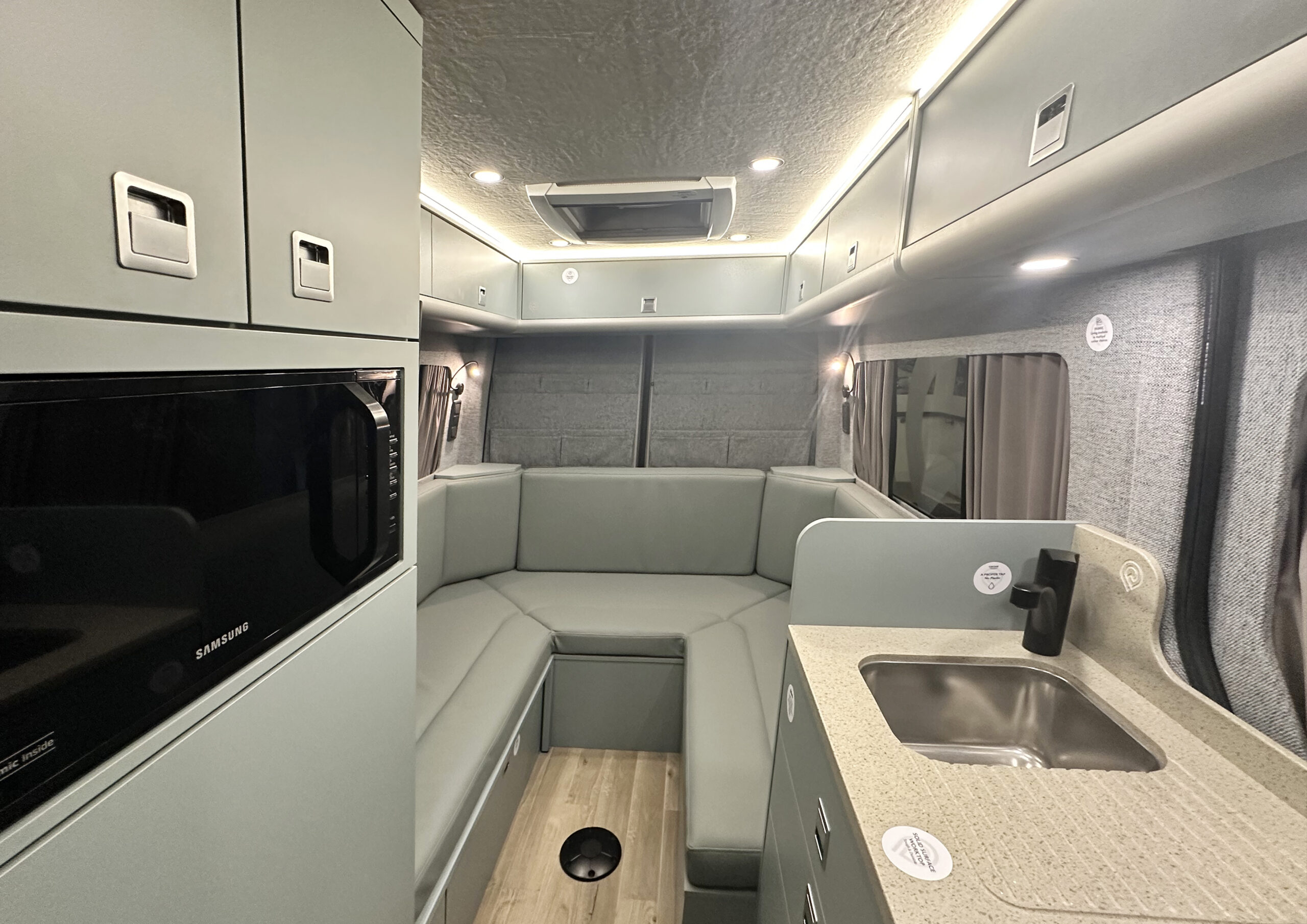

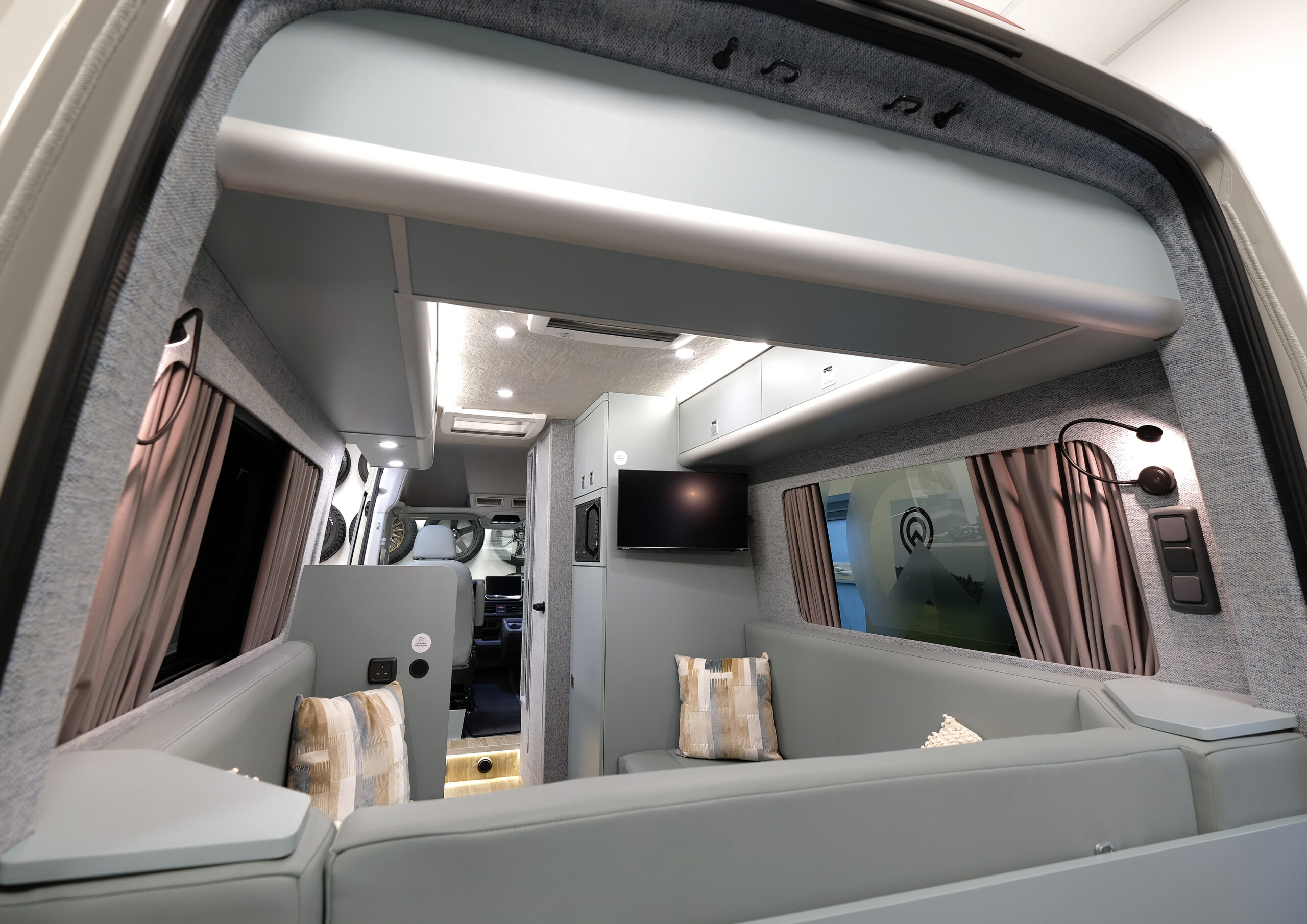

The layout incorporates a rear U-shaped lounge, fully equipped kitchen, bathroom and shower, heating and hot water, underfloor gas and water storage and a high-capacity lithium electrical system.

The vehicle has been designed to offer a high level of specification and off-grid capability within a compact package.



At just 6 metres in length the compact vehicle length offers a manoeuvrable camper while maintaining all the facilities you need to be truely self sufficient.

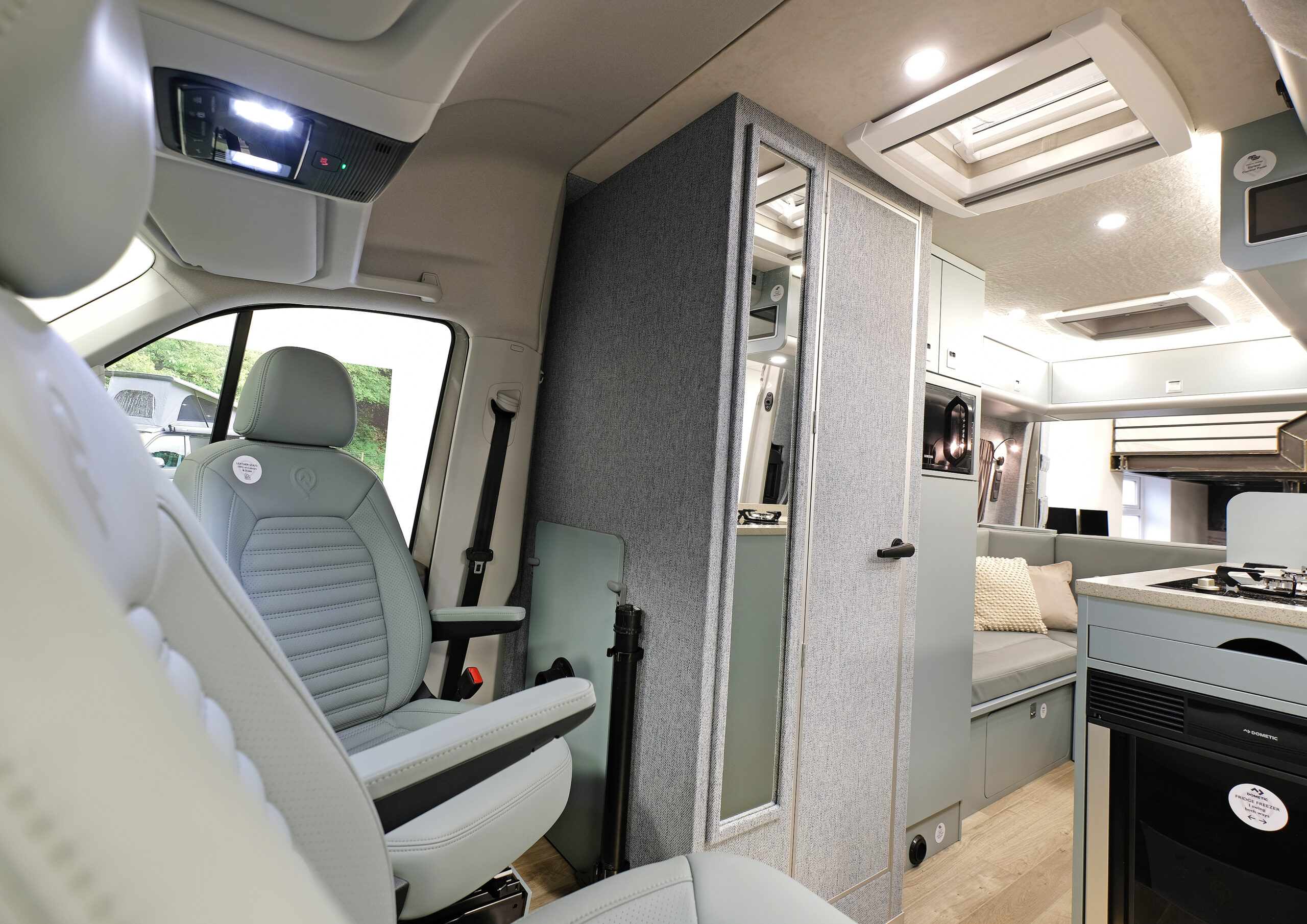

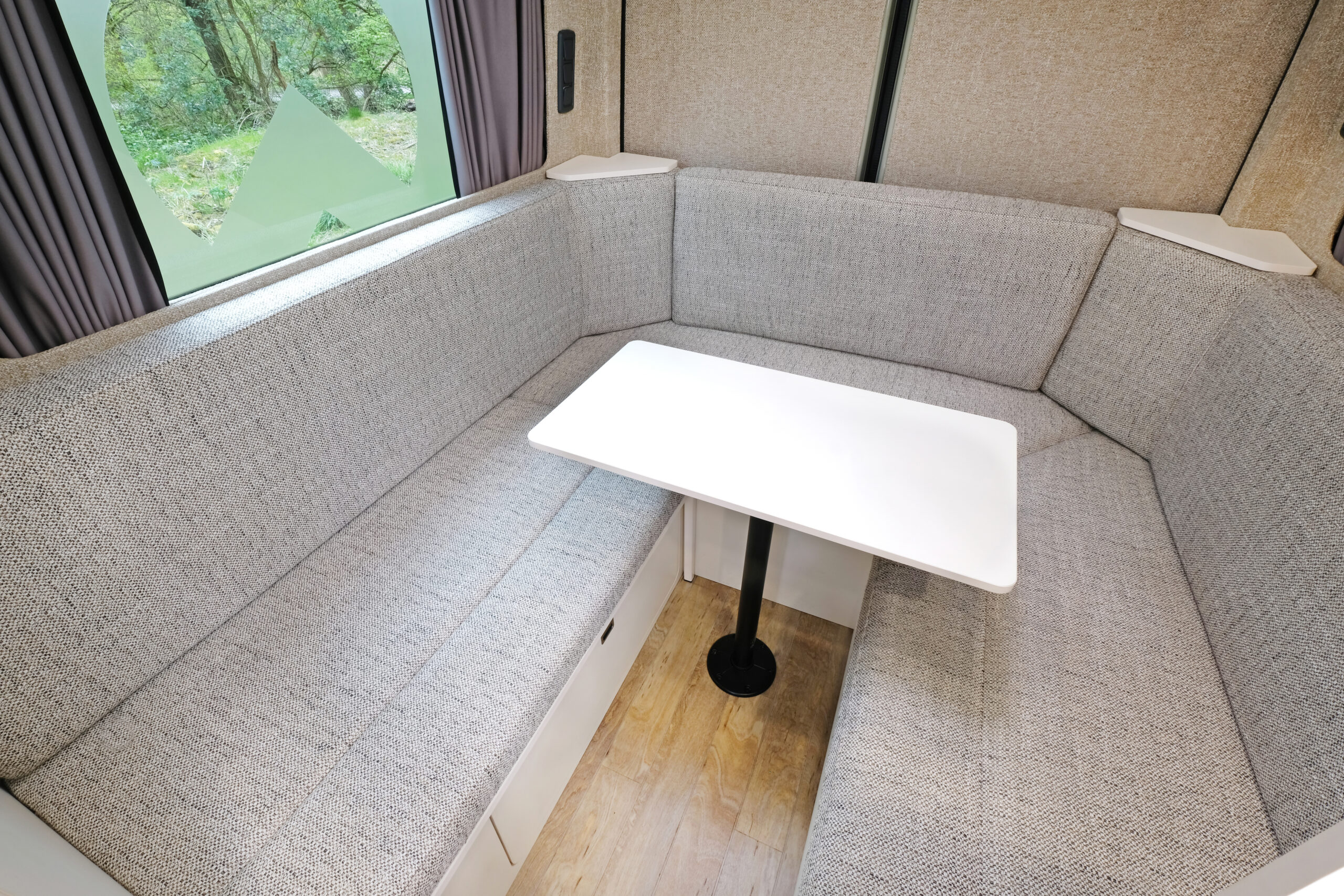

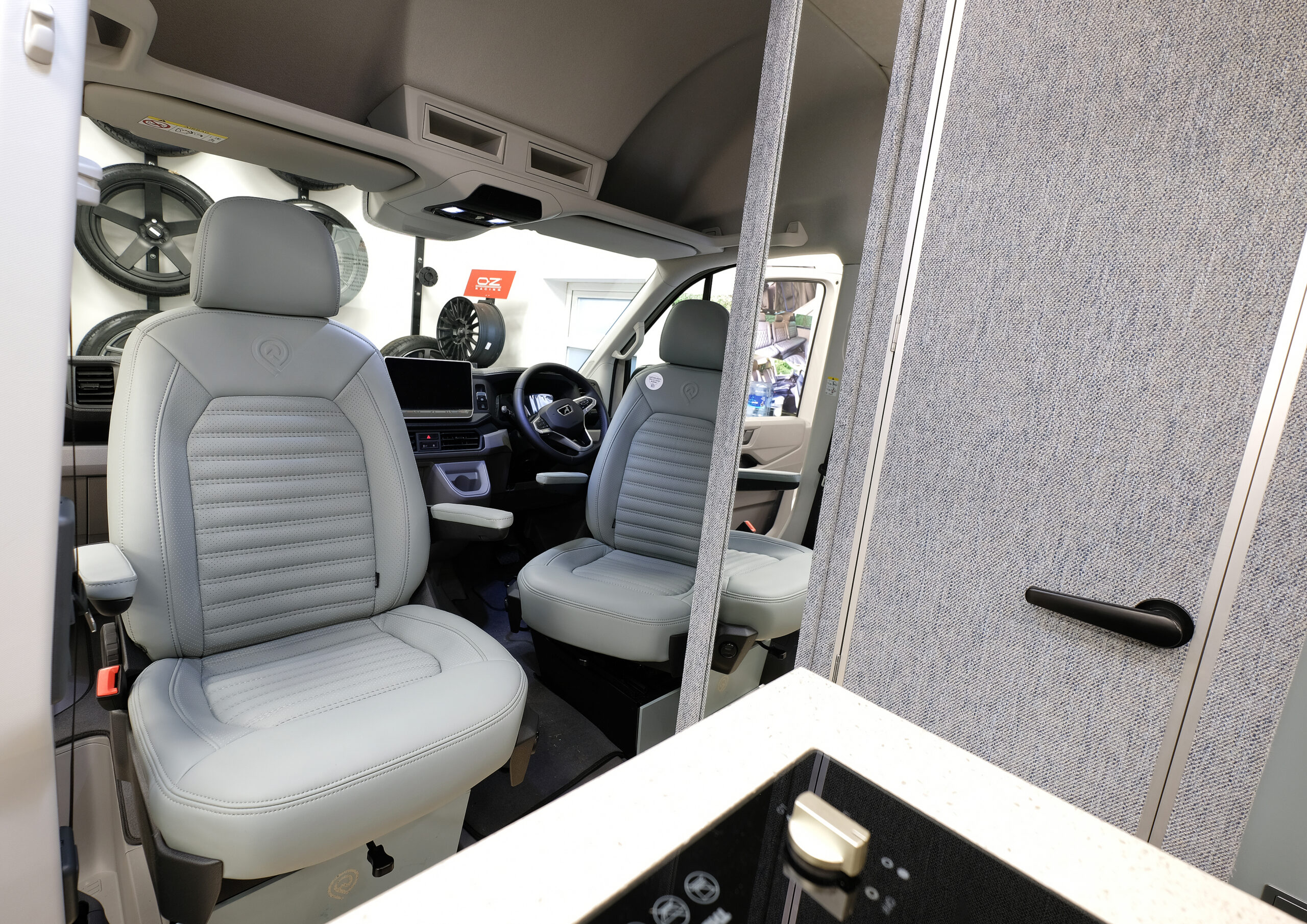

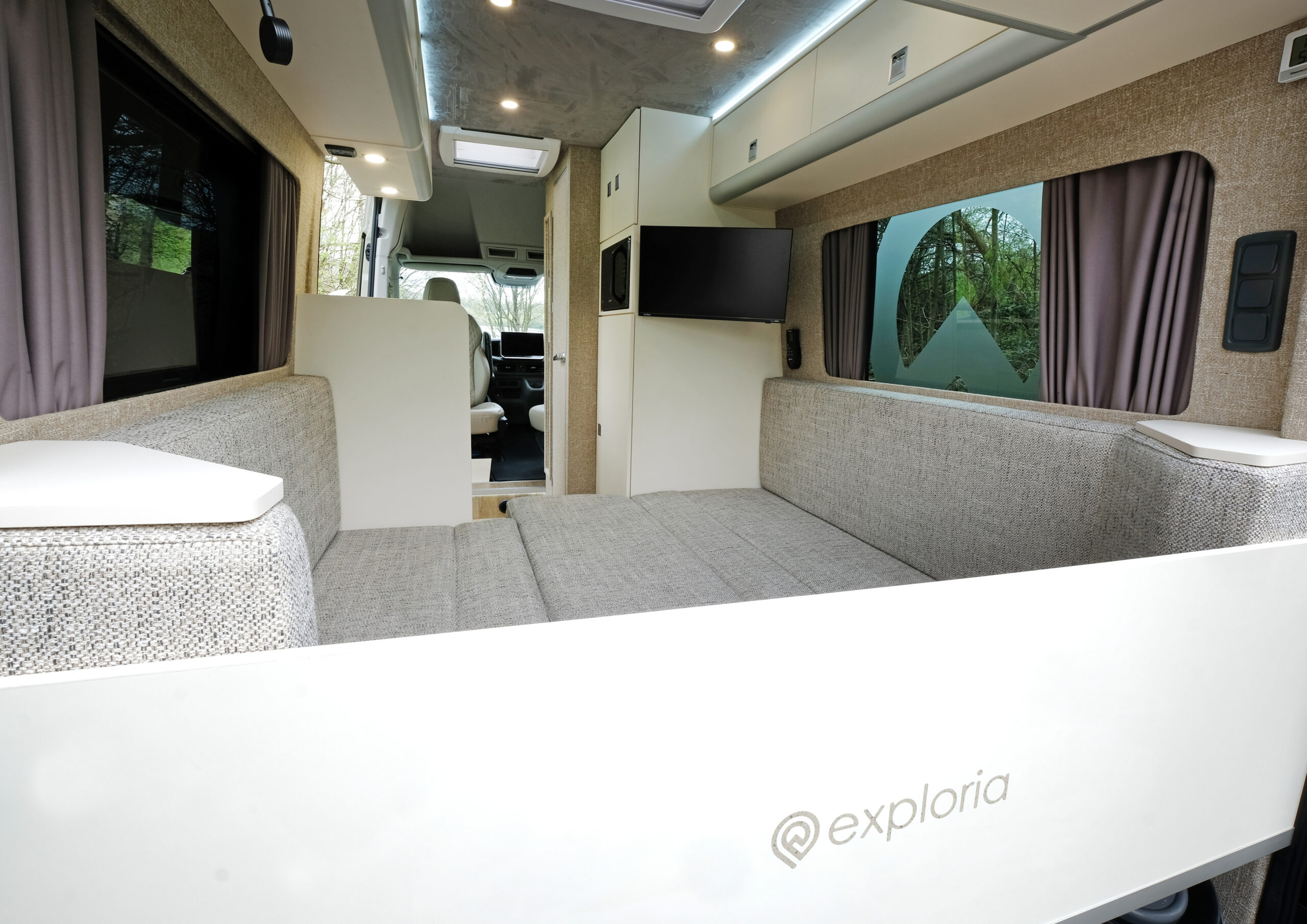

The front seats can be swivelled round to sit at or the is the fantastic U shape lounge  to eat and relax is no issue which turns in to a bed in a few simple moves..



The shower room is practical and usuable with a Thetford toilet, fixed wash hand basin and seperate wall mounted shower head.

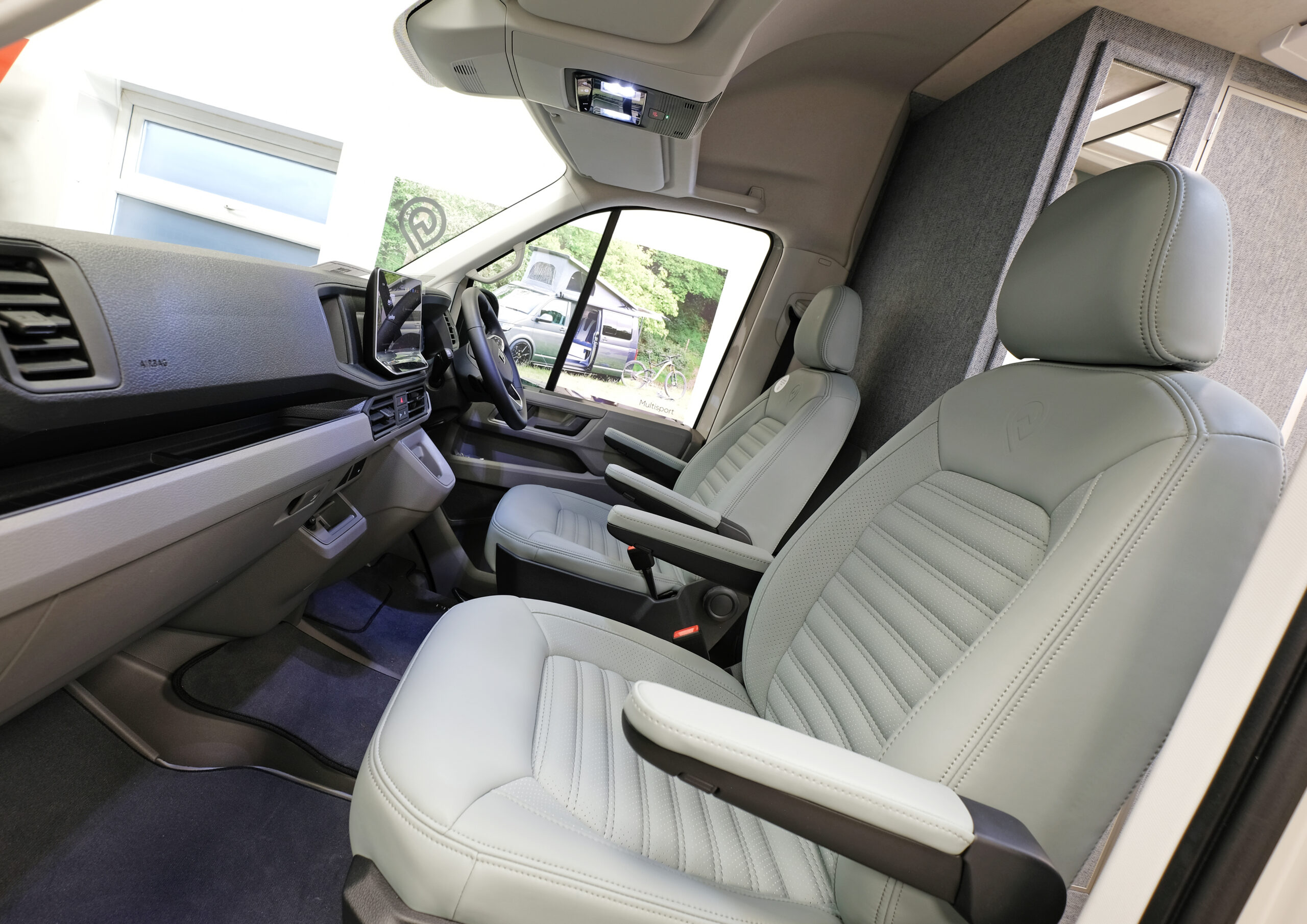

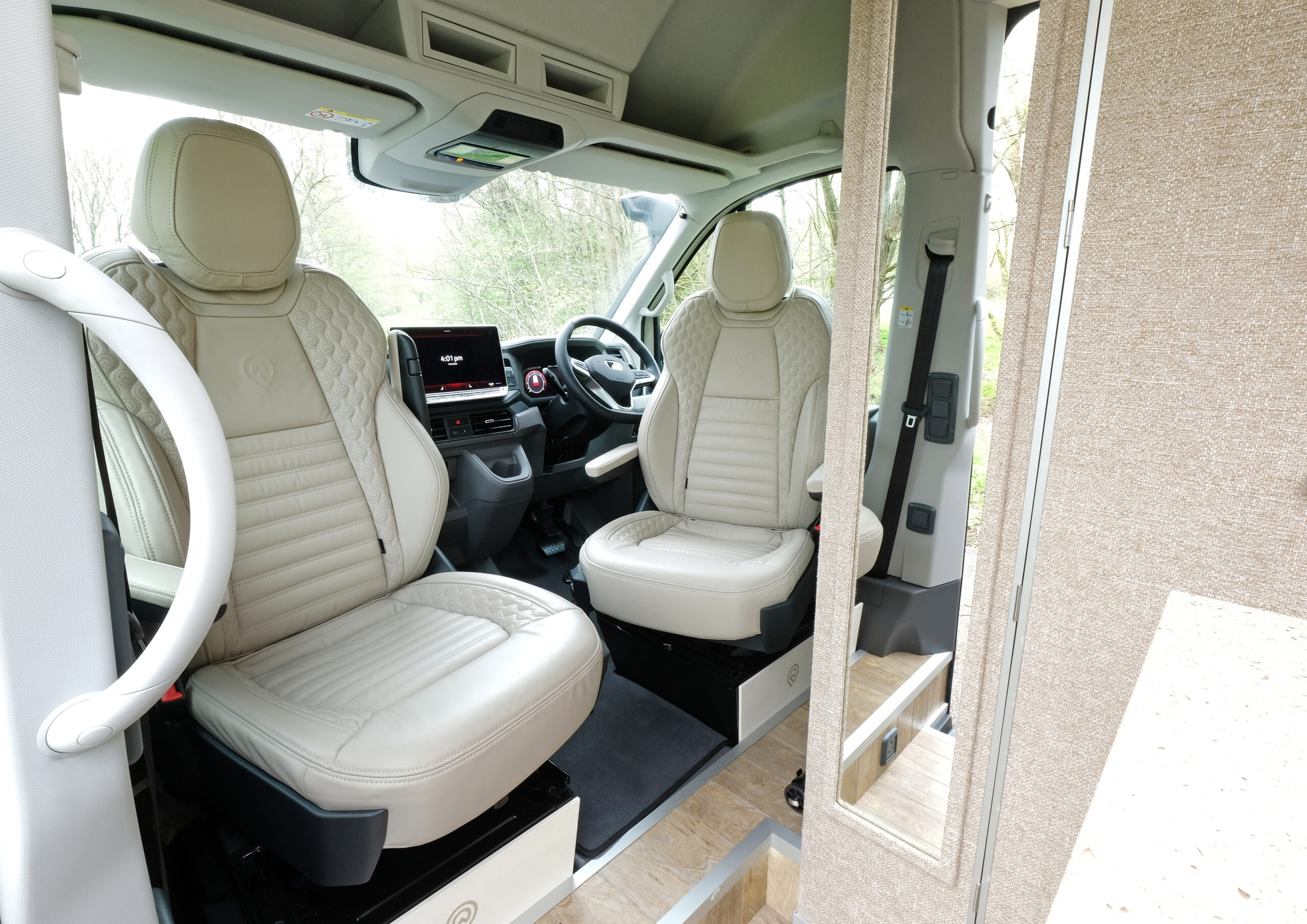

Seating is an important part of any build. We recommned a vehicle with 2 Single factory cab seats with swivel bases to start with. Getting this right with a factory bulkhead delete can save thousands on a seat swap, additional swivels, tidying up the rear of the pillars where the bulkhead was and making right the floor..

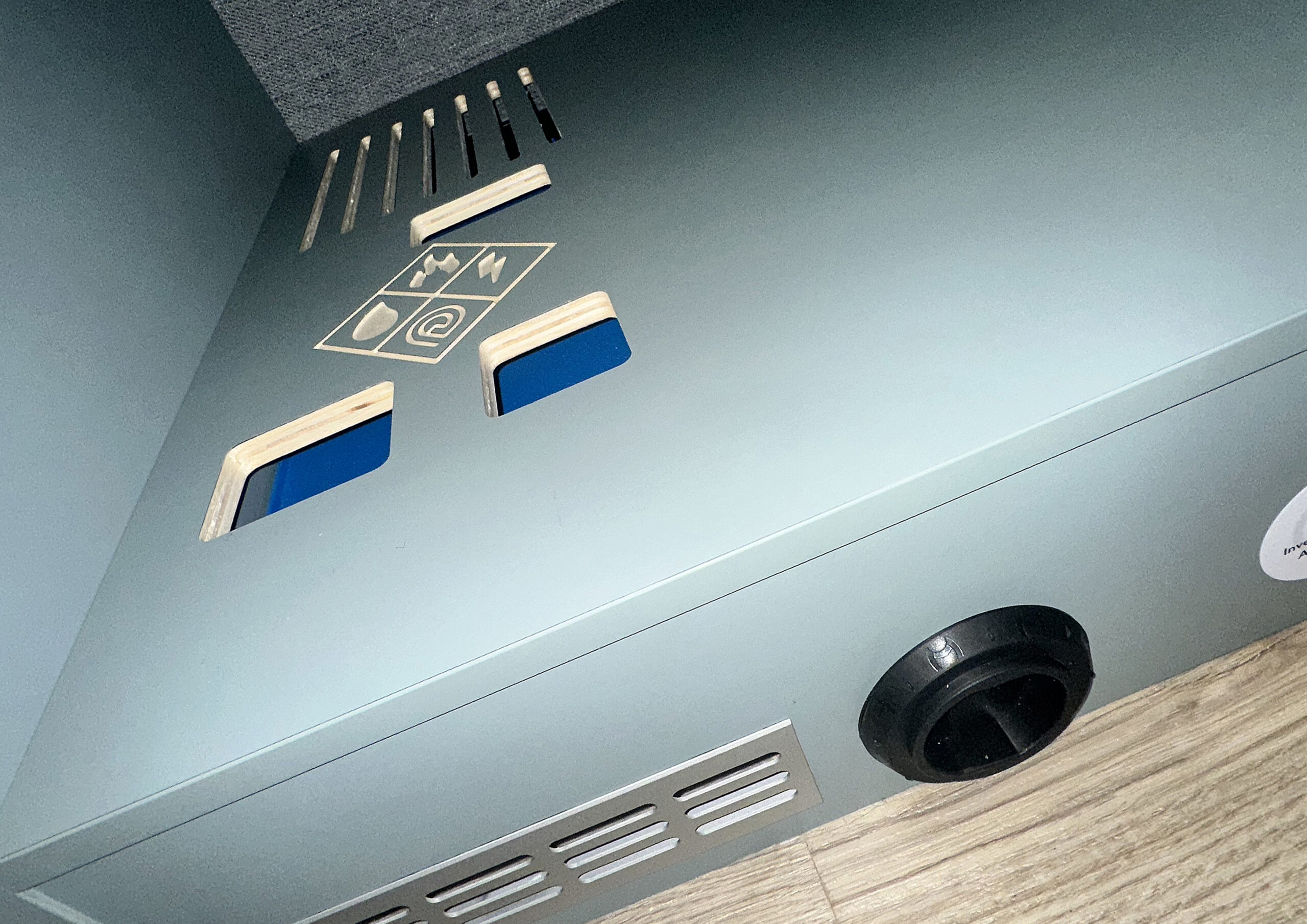

With Exploria's in house design team and manufacturing facilites we have developed our own specific freedom furniture.

Cut out on our CNC router machine and assembled and installed by Exploria's skilled team we build each and every camper to the specific customers colour choices.

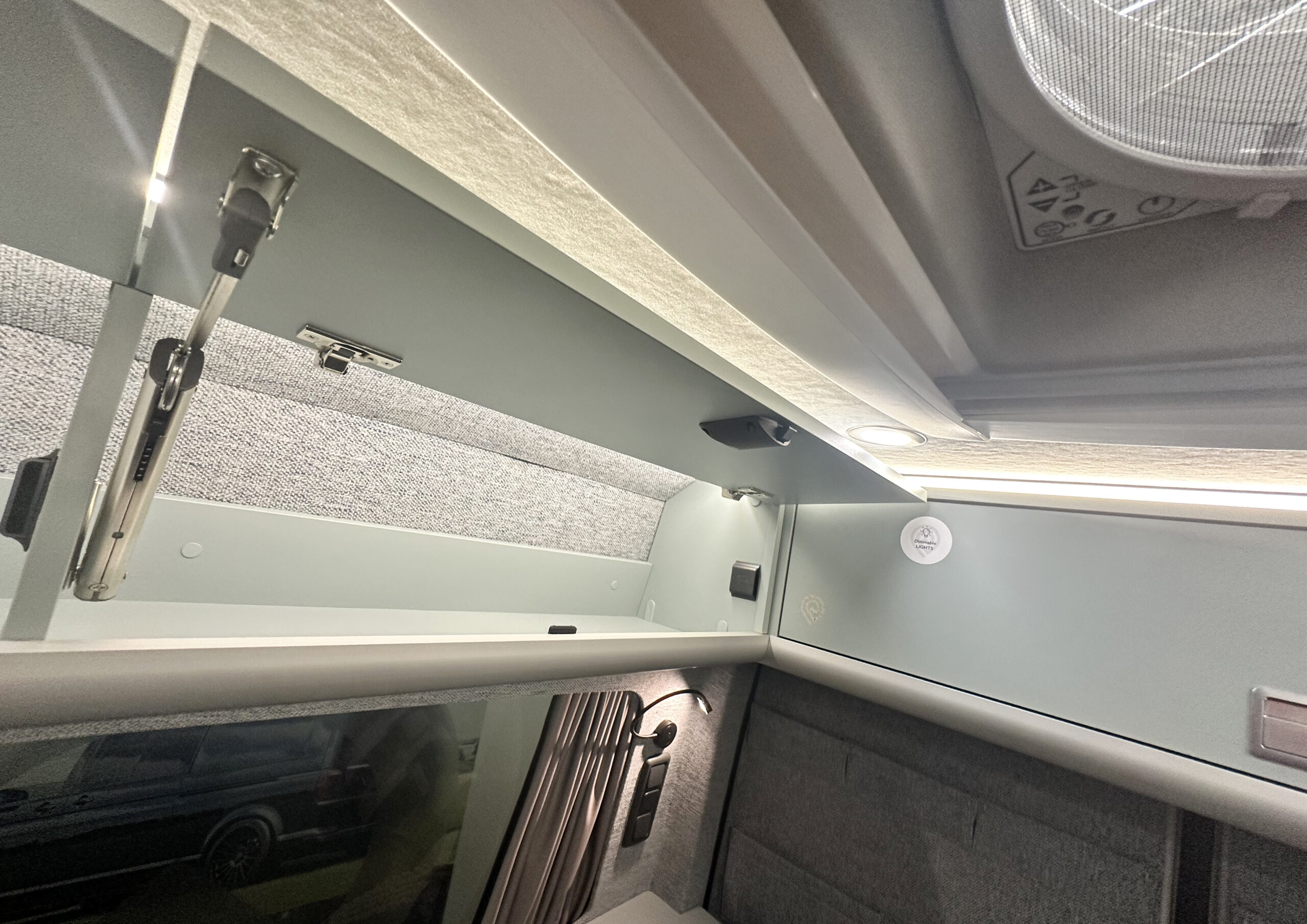

Using the best lightweight 15mm furniture board, solid surface materials and industry leading draw runners, handles and latches you will be hard pushed to find a better level of camper furniture.

The basis of all Exploria's conversion is high quality sound proofing and insualtion. It is a critial point for us and something we feel has to be correct as the foundation of any build.

We use sound deadening matting, recon fibre and recycled plastic bottom wool.

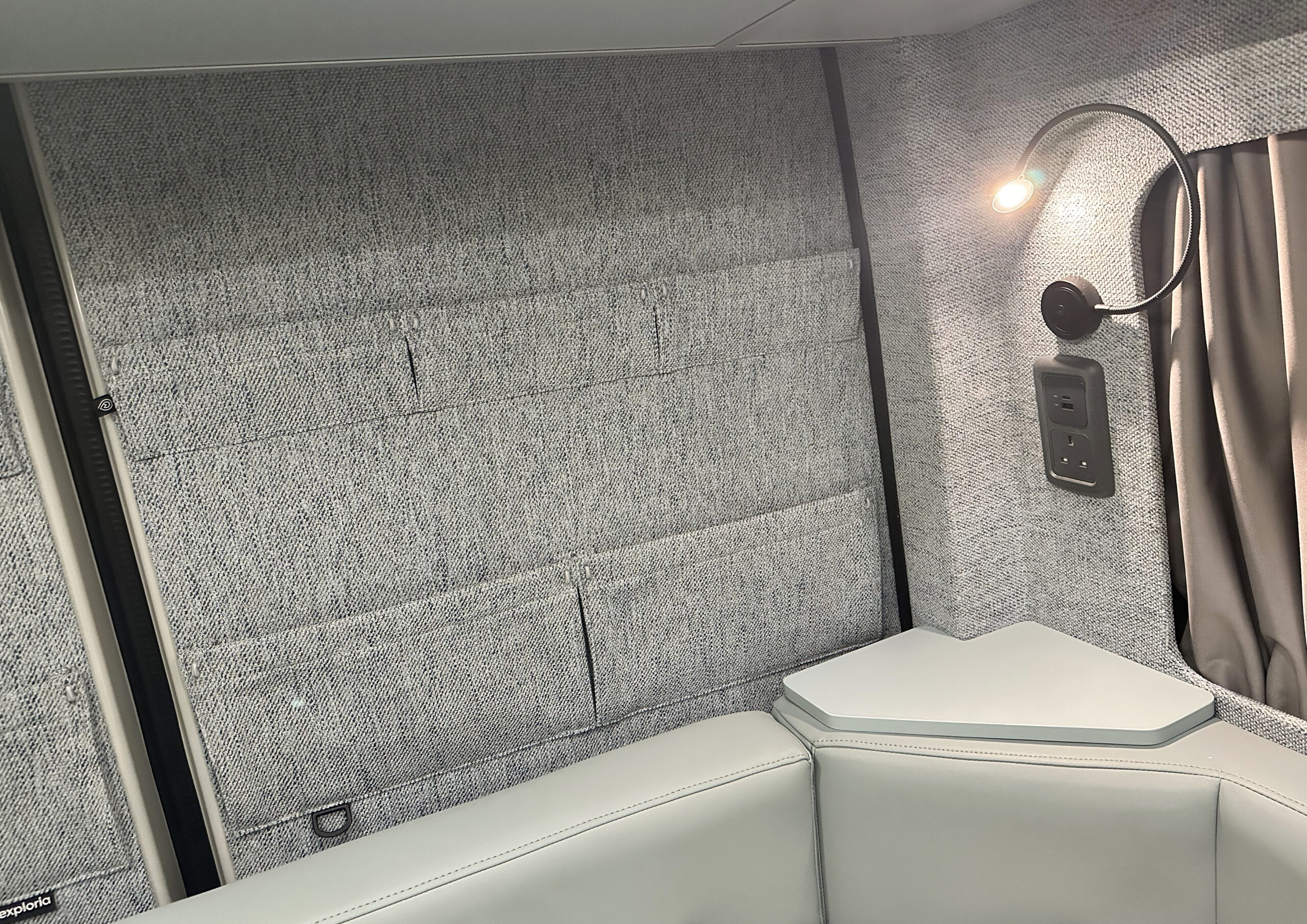

This is followed by high quality ply which is then finished in a fabric lining material of your choice.

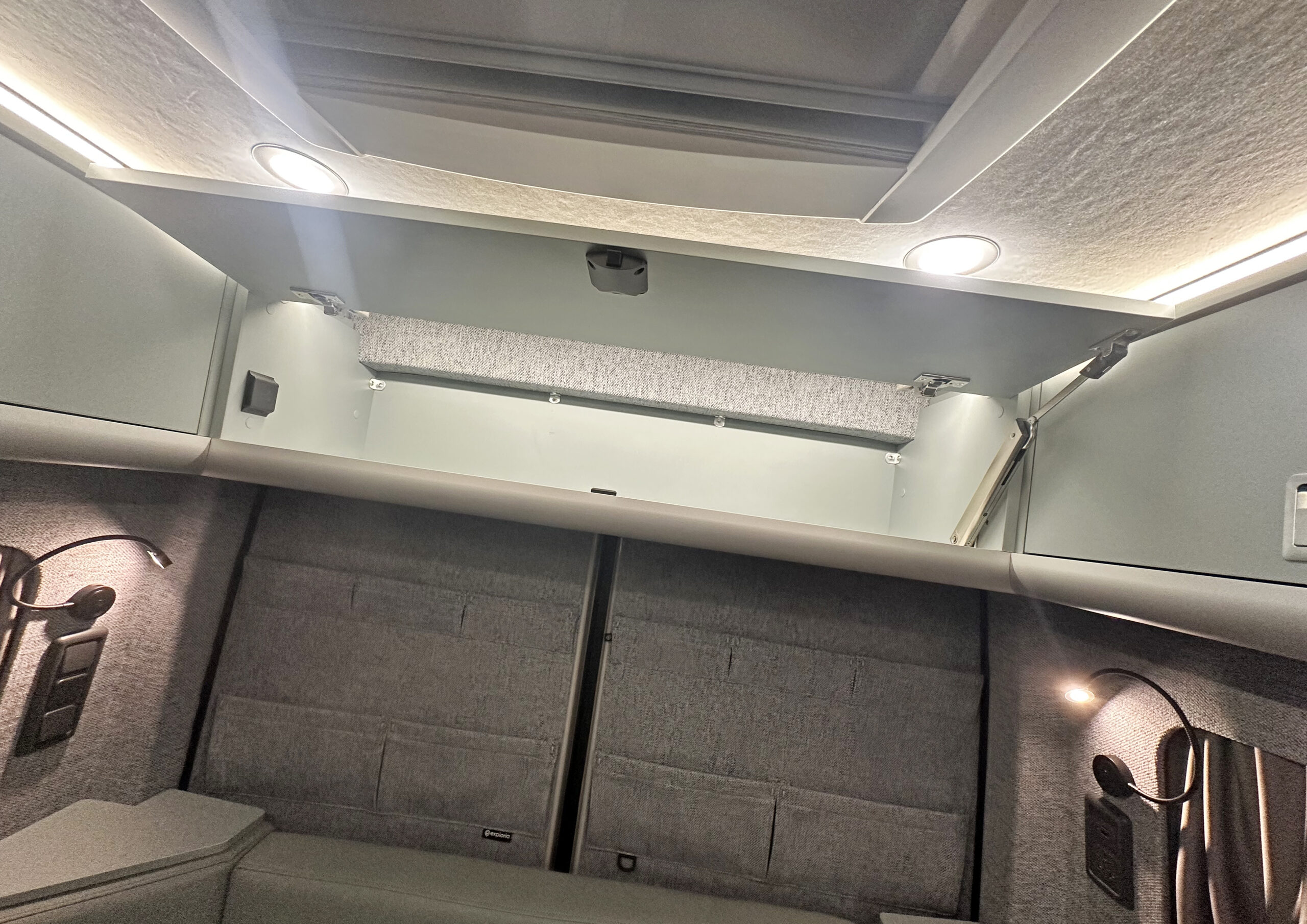

LED Spot lighting in the headlining is standard on all Freedom models.

Additional listing can be added as required. Surround lighting and additional spots can all be added to key areas.

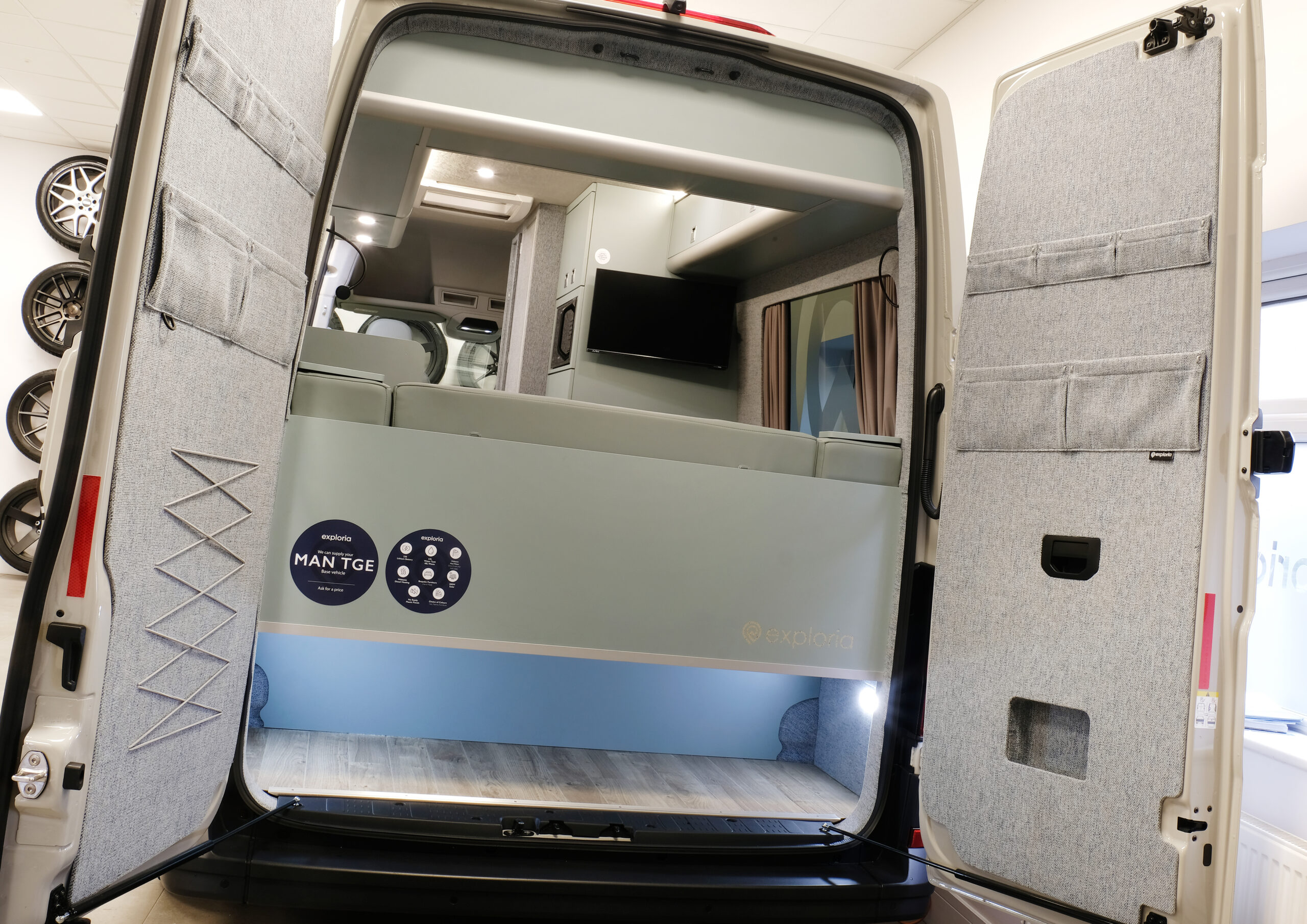

Underbody Water - 63litre fresh and 40litre waste

Webasto Deisel Airtop heater

Webasto Deisel Thermotop hot water system

12v Fresh Water Pump

12v Waste Water Pump

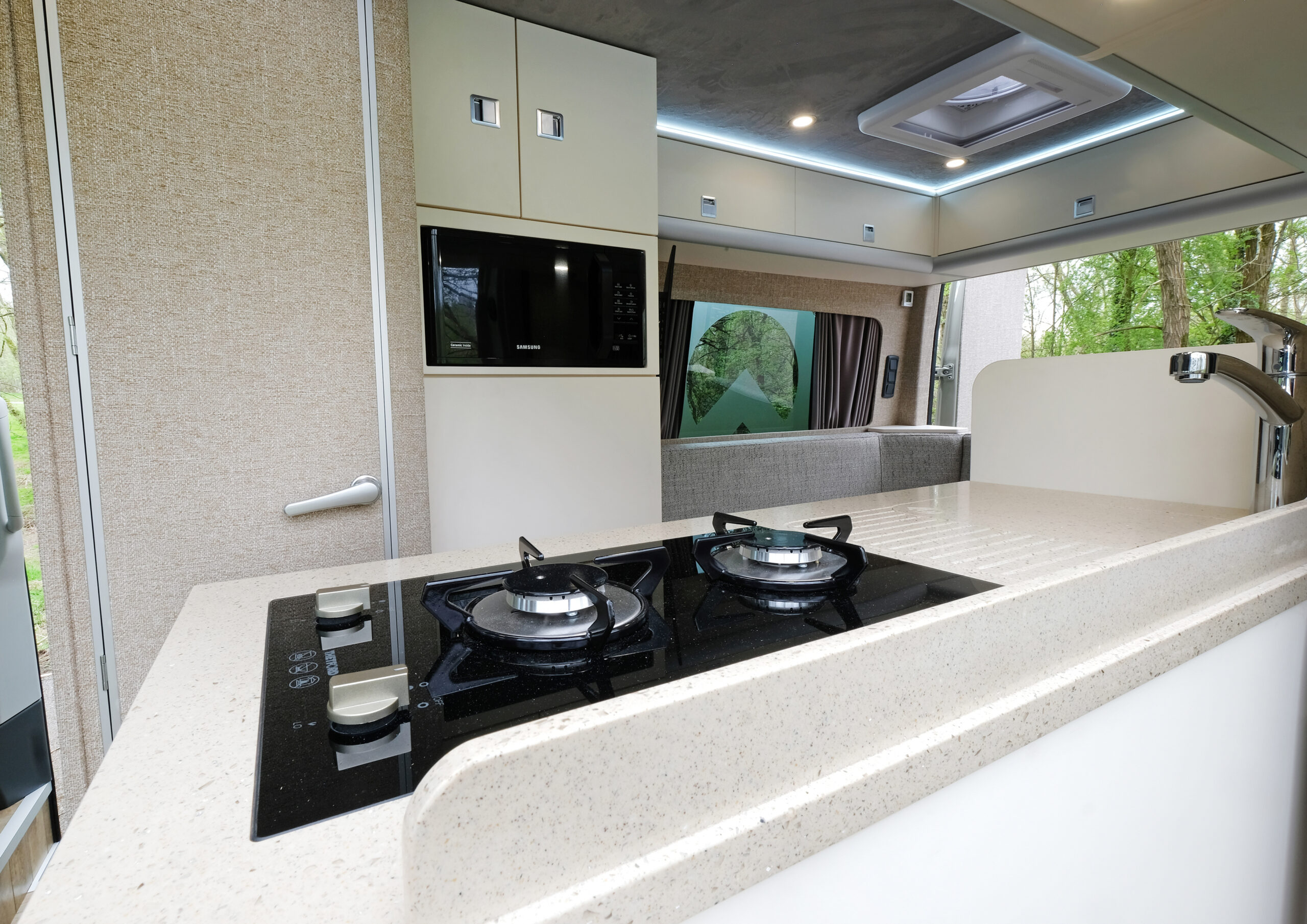

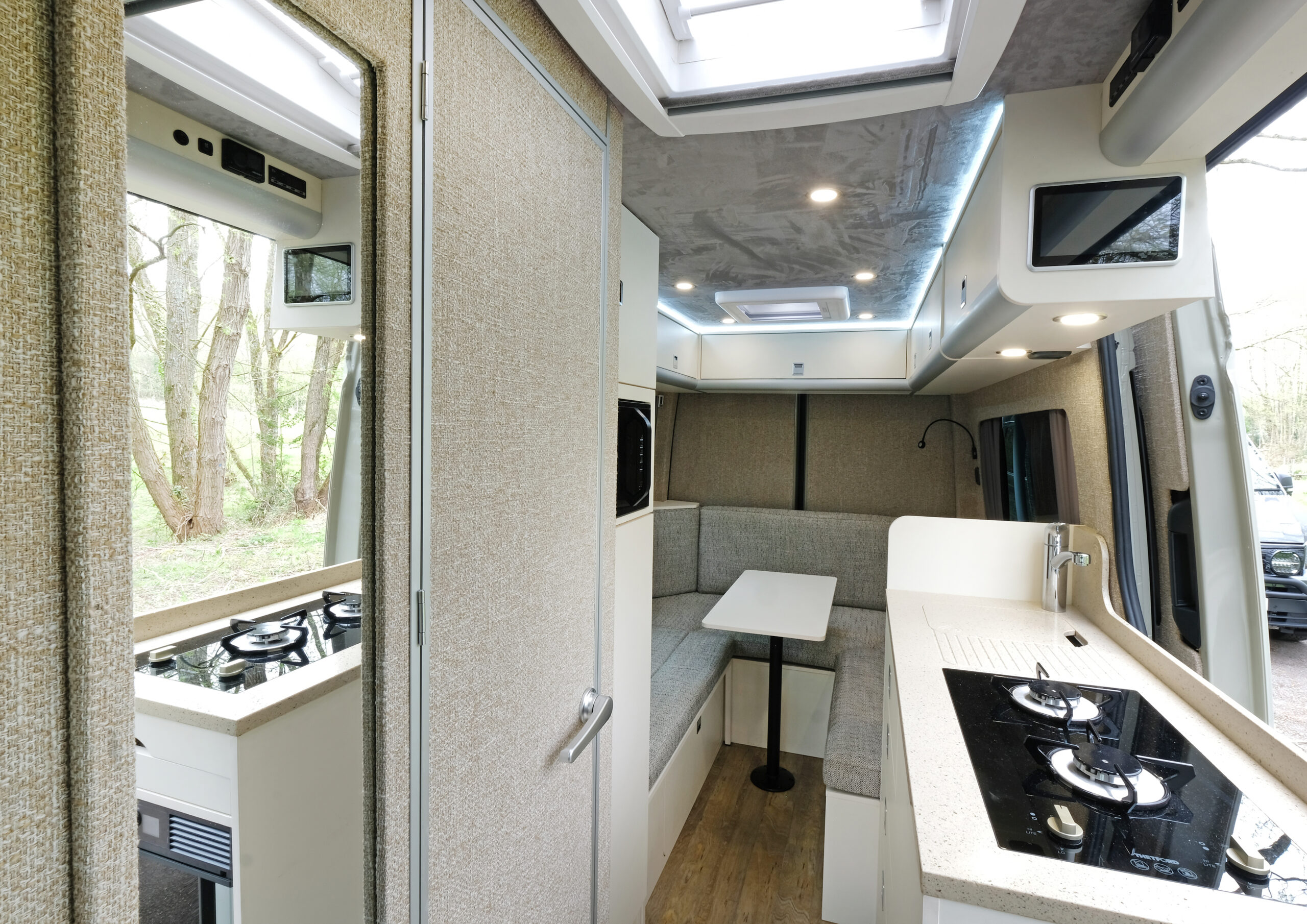

Hob - 2 burner gas hob powered by underbody LPG gas

Sink - Deep kitchen sink with enough space for washing up using the hot and cold mixer tap

Fridge - 70l Dometic twin Hinge fridge with removable freezer compartment.

If you are a film buff or just like to have some great quality tunes while on your travels we have options to suit.

For audio we partner with Audison to offer everythign from front speaker upgrades to fully amplified soud systems.

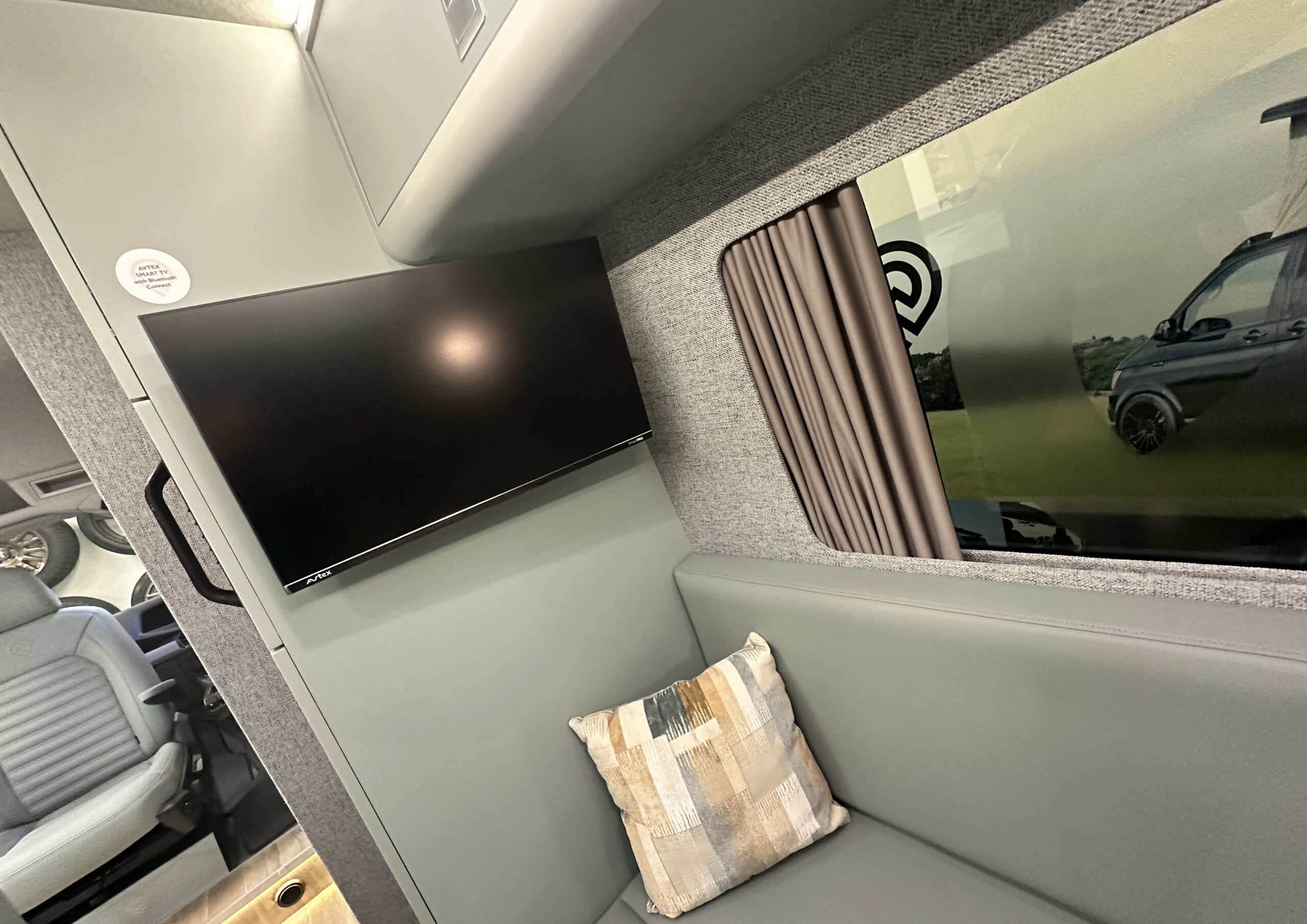

We have smart television options or a smart projector could be installed with a roll out screen.

Integrate your media with our sound system with bluetooth connectivity and you have a movable movie mobile.

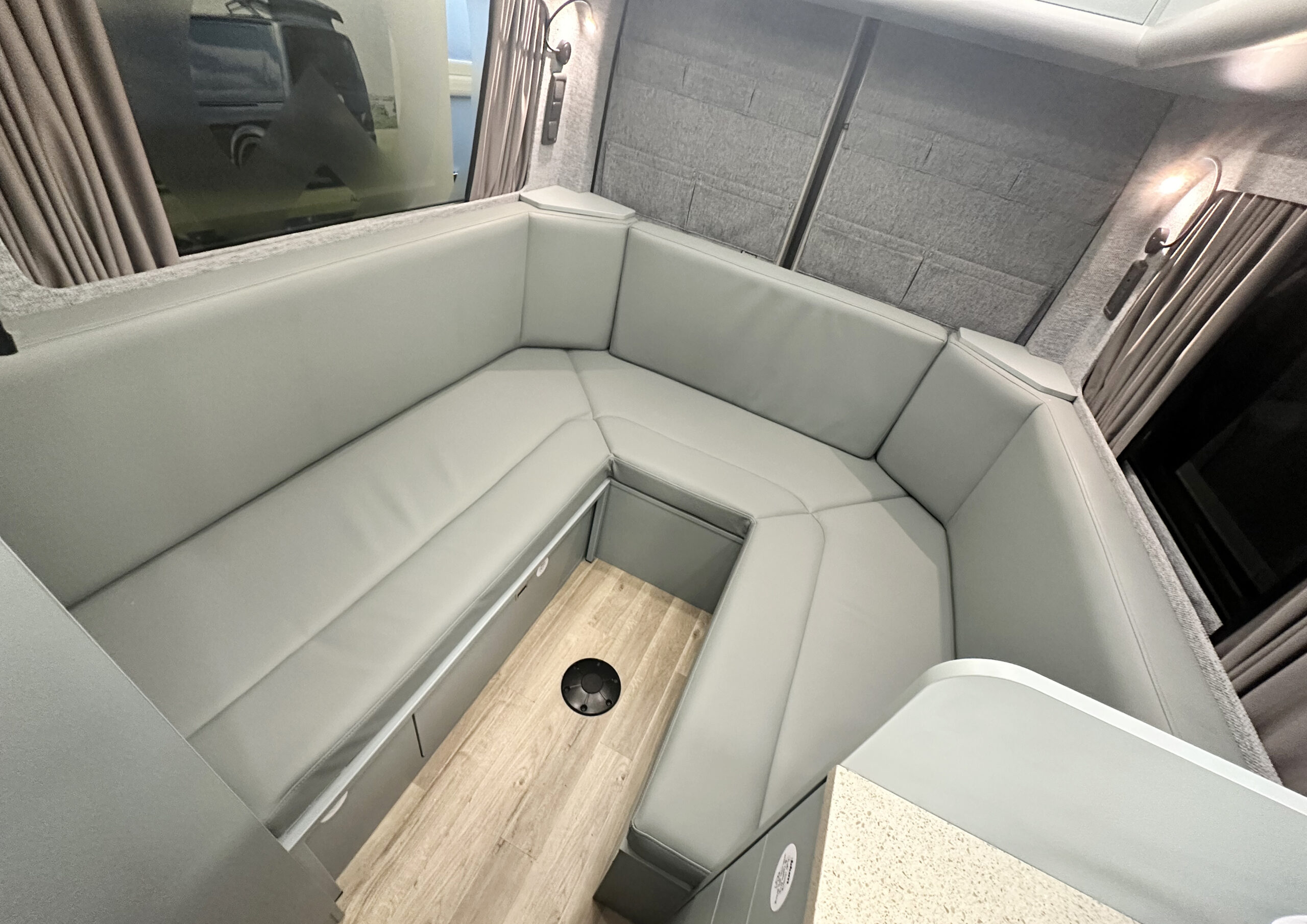

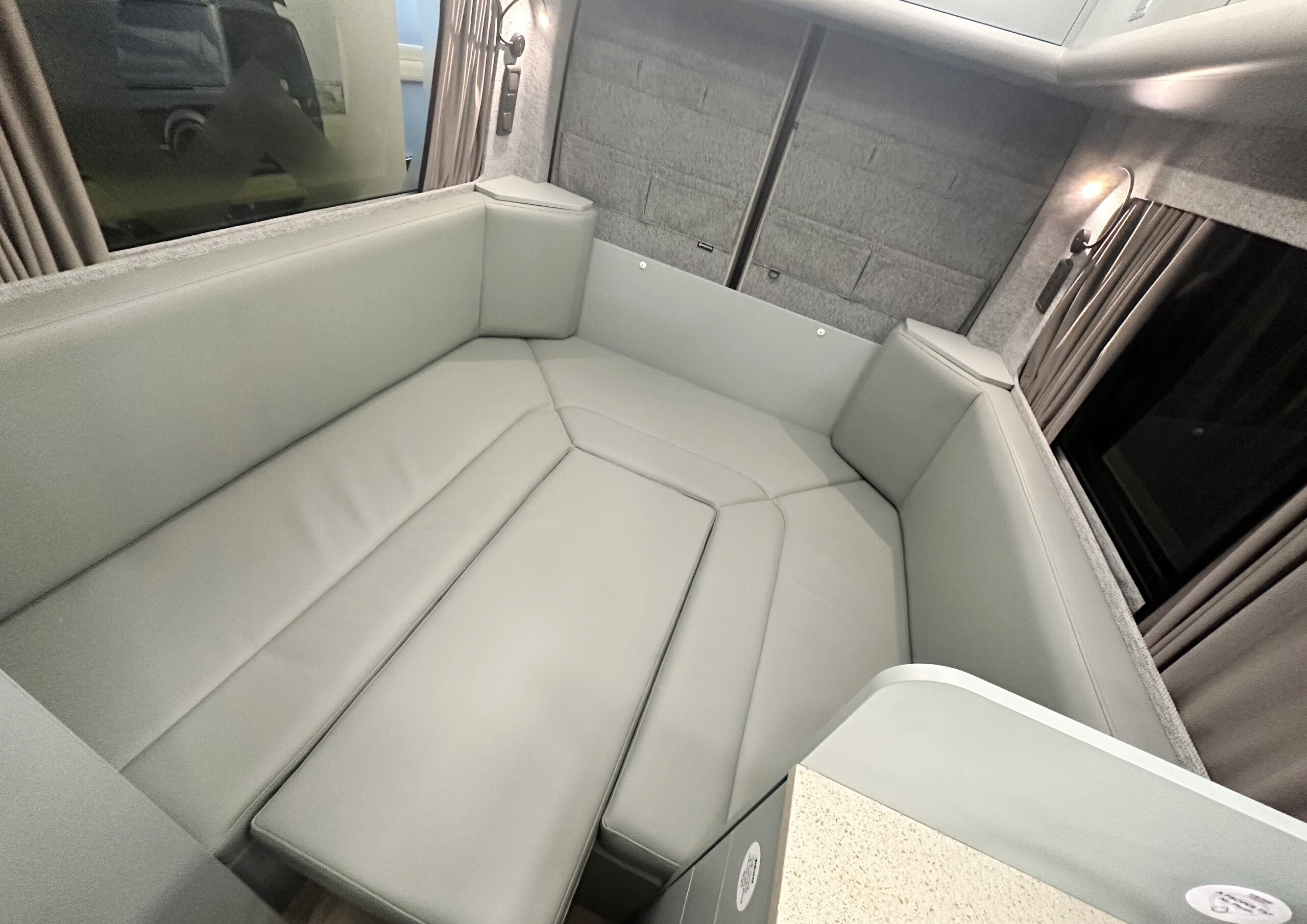

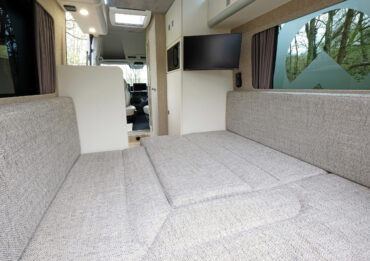

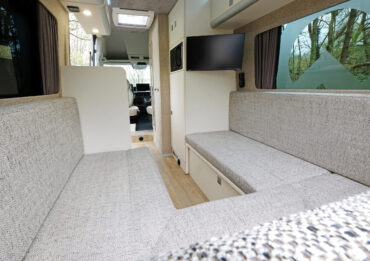

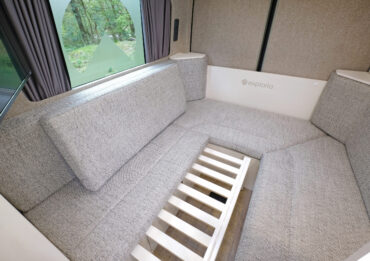

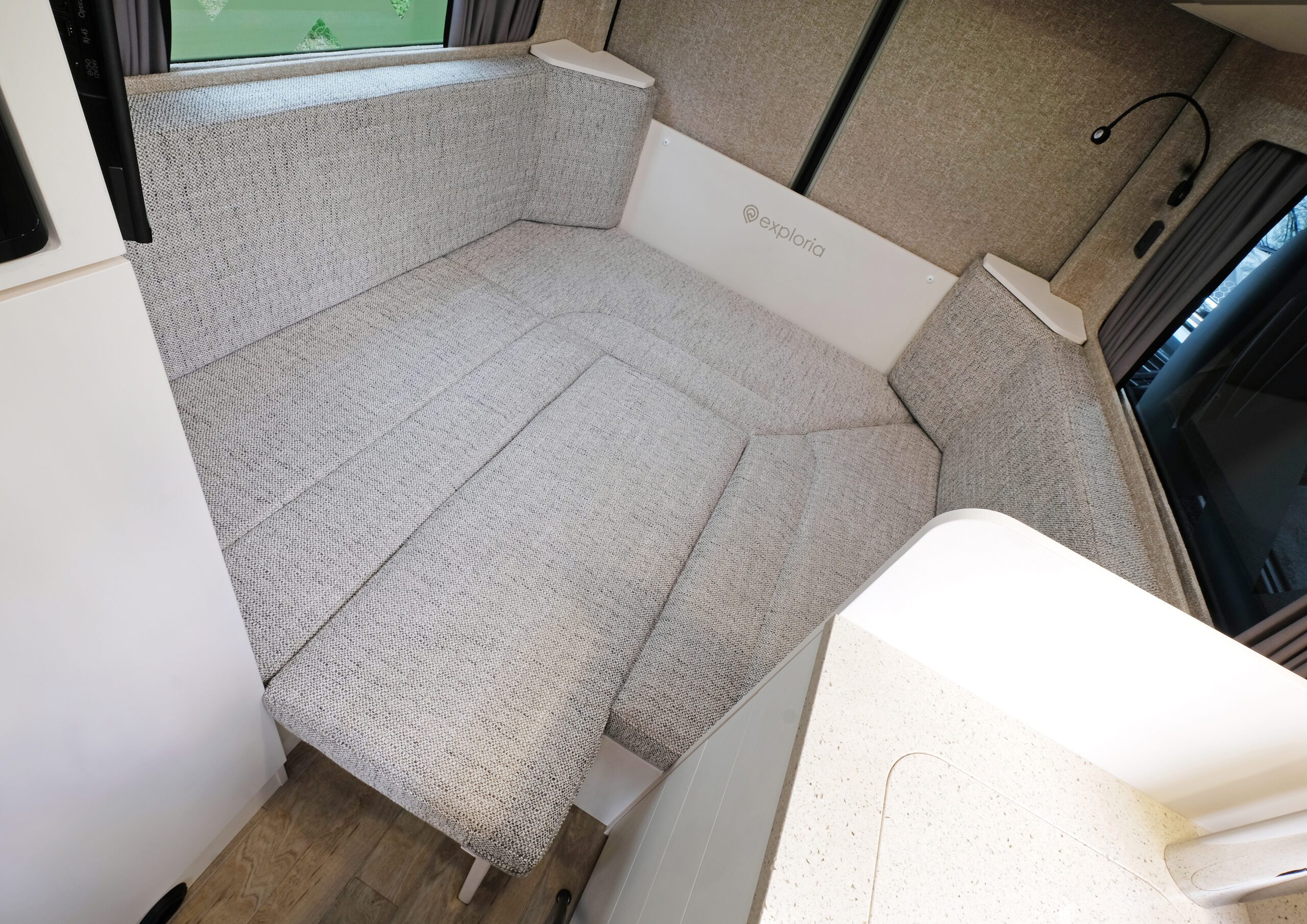

The U shape lounge can be turned in to a bed in 2 simple steps, pull the frame out for the left hand side and place the cushion in the gap from the rear of the van.

Ensuring there is enough power for your appliances and devices to last the duration of your adventure is important. This is why Exploria install a large lithium battery as standard.

The leisure battery is a 230Ah smart lithium unit which is class leading. With live battery information on a smart phone app keeping a check on the the battery status is no issue.

We are fans of the high quality and Victron engery products. They produce a full range of electrical components specifically designed for in vehicle applications. At Exploria we use their battery to battery chargers to charge the leisure battery while you are driving.
When it comes to mains electric hook up we use the brilliant Victron 1600VA inverter charger. Thsi clever unit charges the leisure battery when on hook up and when not it can be used as a inverter to give main powers to the 3 pin sockets from the leisure battery. This saves space in the vehicel over a traditional seperate inverter and charger set up. It also means you only need 1 set of 3 pin sockets which work on both main hook up and inverter only!

If you wish to stay away from campsites for as long as possible the addition of an optional 200w roof mounted solar panel could be well worth considering. Neat and functional it can be happy topping up your battery when you are parked and the UV rays are beating down on it.

What is included in an Exploria Freedom Camper Conversion?

Typical Exploria Freedom conversions start from around £43,000+VAT on a suitable base vehicle with a 'camper' ready specification.
We work on an itemised quotation basis and fully customise each build to suit your requirements and budget.

Exploria believe in delivering great quality campers which we would be happy to use ourselves. For this reason may of our standard features would be extras or upgrades from other conversion companies.

All the below features are standard in an Exploria Freedom Build:

Water & Gas

  • 63L fresh water tank.
  • 40L waste water tank.
  • Underfloor LPG storage.
  • External hot water shower.
  • Integrated gas and water level monitoring.
  • External BBQ gas point.
  • Frost protection / winter protection.

Heating & Hot Water

  • Webasto air heating with 7 day controller .
  • Webasto Evo Top TT hot water system.
  • Fast heating and 4min for hot water.

Interior

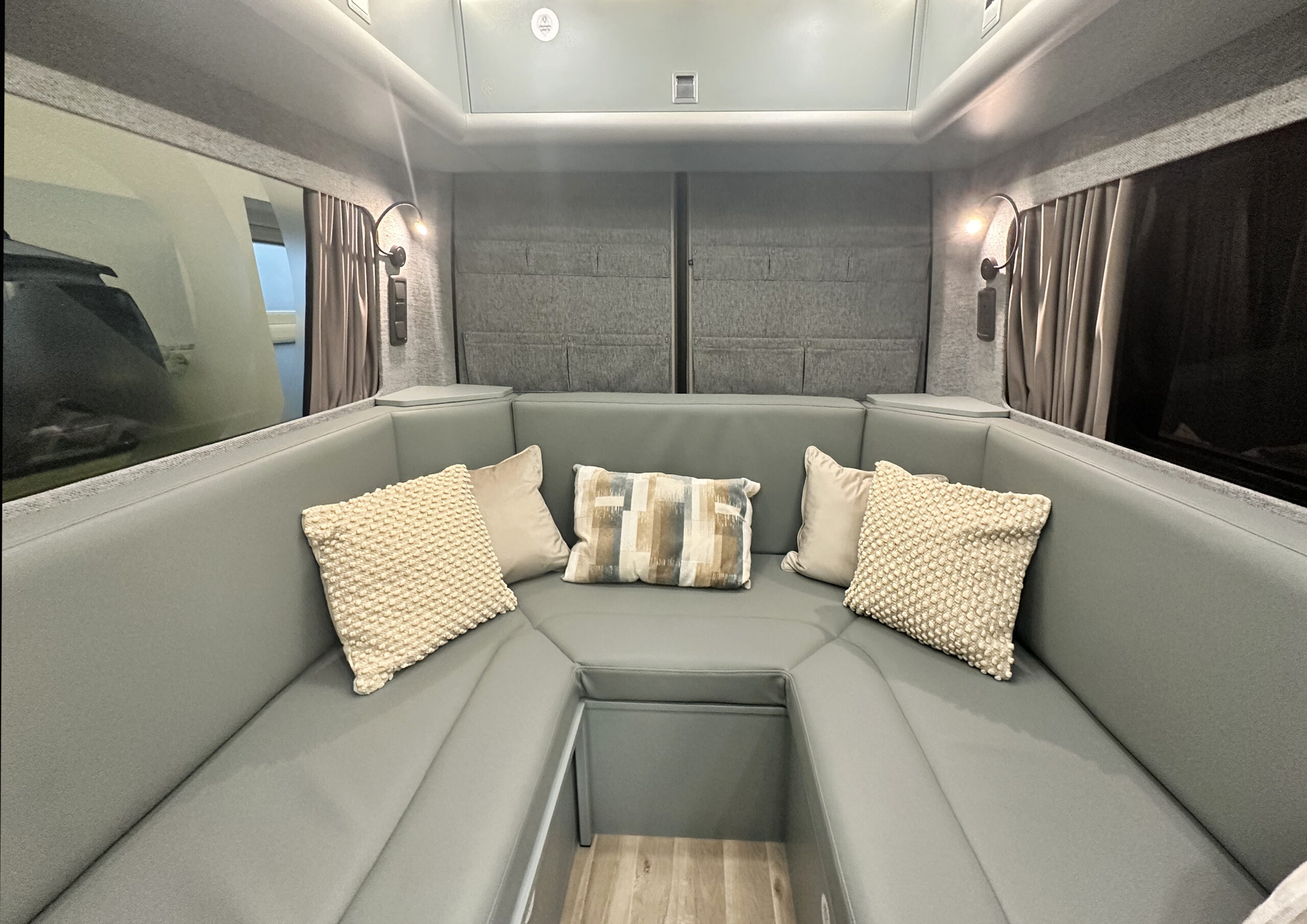

  • Rear U-shaped lounge / sleeping area.
  • Bespoke Exploria furniture.
  • Solid-surface kitchen worktop.
  • Dometic 70L fridge.
  • Thetford two-burner hob.

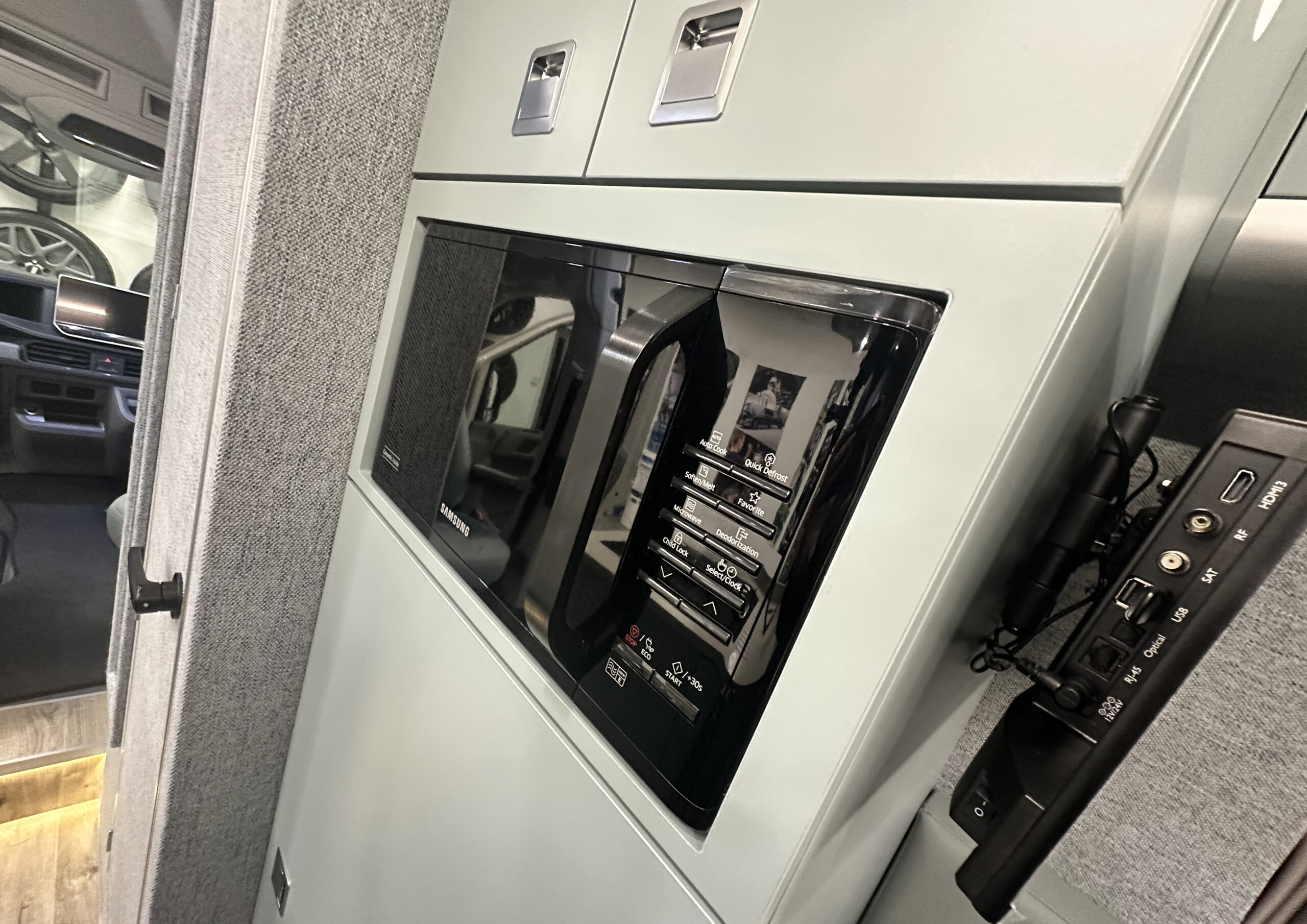

  • Microwave.
  • Hansgrohe fittings.
  • Fully waterproof shower room.
  • Solid-surface shower tray and worktop.
  • Thetford toilet.
  • LED illuminated mirror.
  • Premium upholstery and finishes.

Electrical & Off-Grid Capability

  • 230Ah lithium leisure battery.
  • Victron 50A B2B charger.
  • Victron Ekrano GX monitoring/control system.
  • 200W solar panel.
  • USB-A / USB-C charging.
  • Automatic inverter / mains changeover.

Exterior

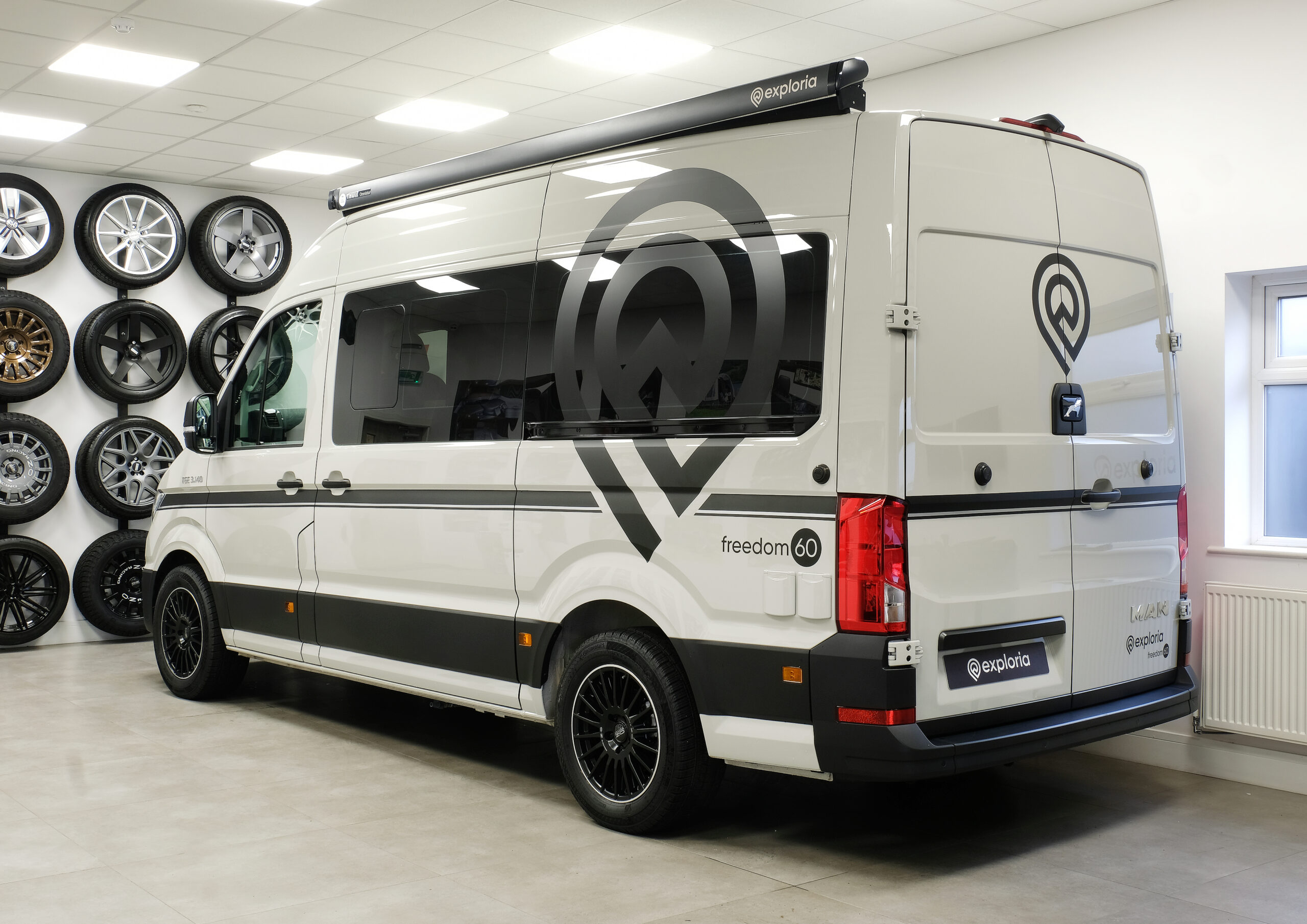

  • Exploria graphics.
  • Gas-assisted rear doors.

Certification

  • IVA.
  • Motorhome registration requirements.
  • Gas testing and certification.
  • Associated conversion compliance.

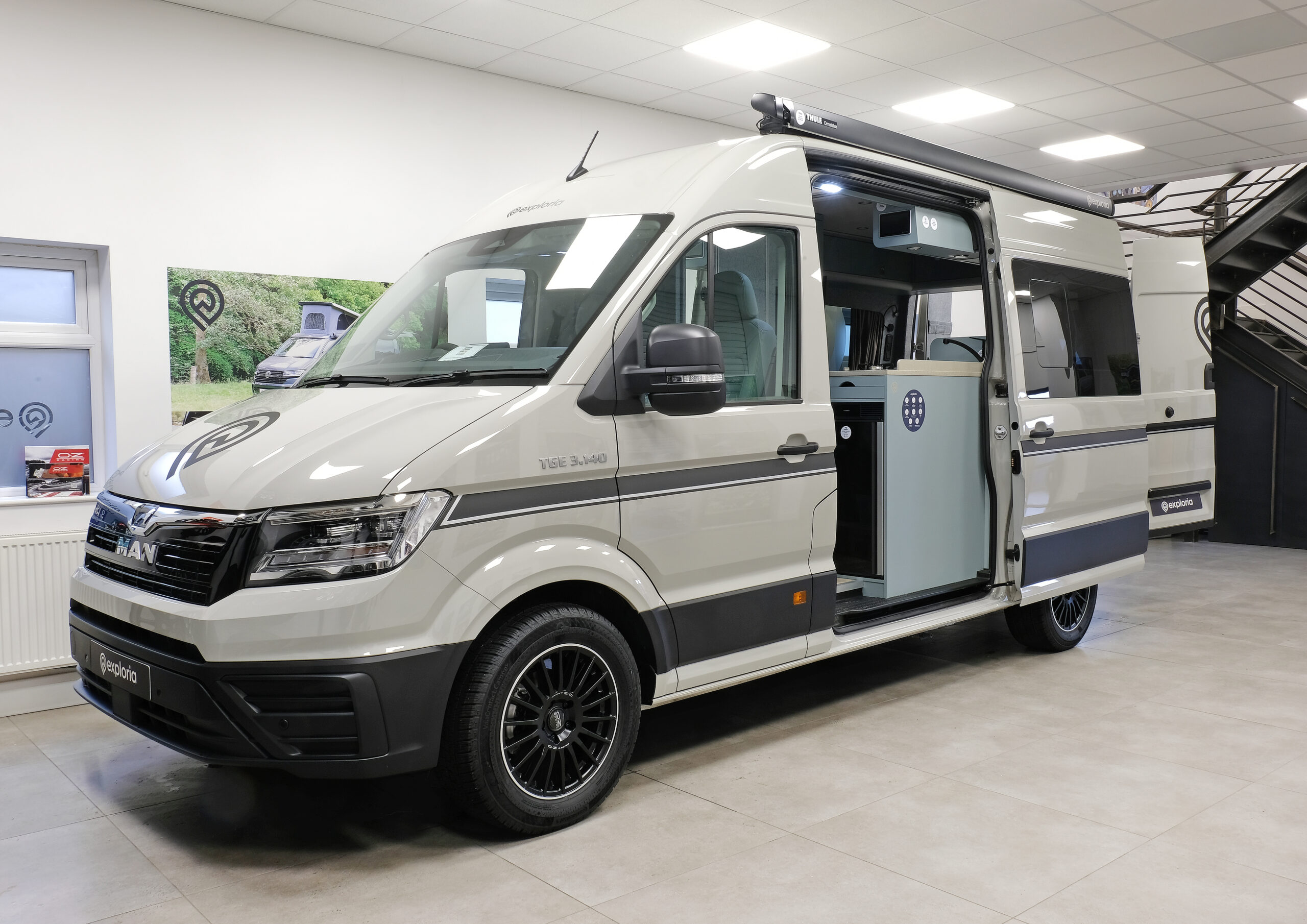

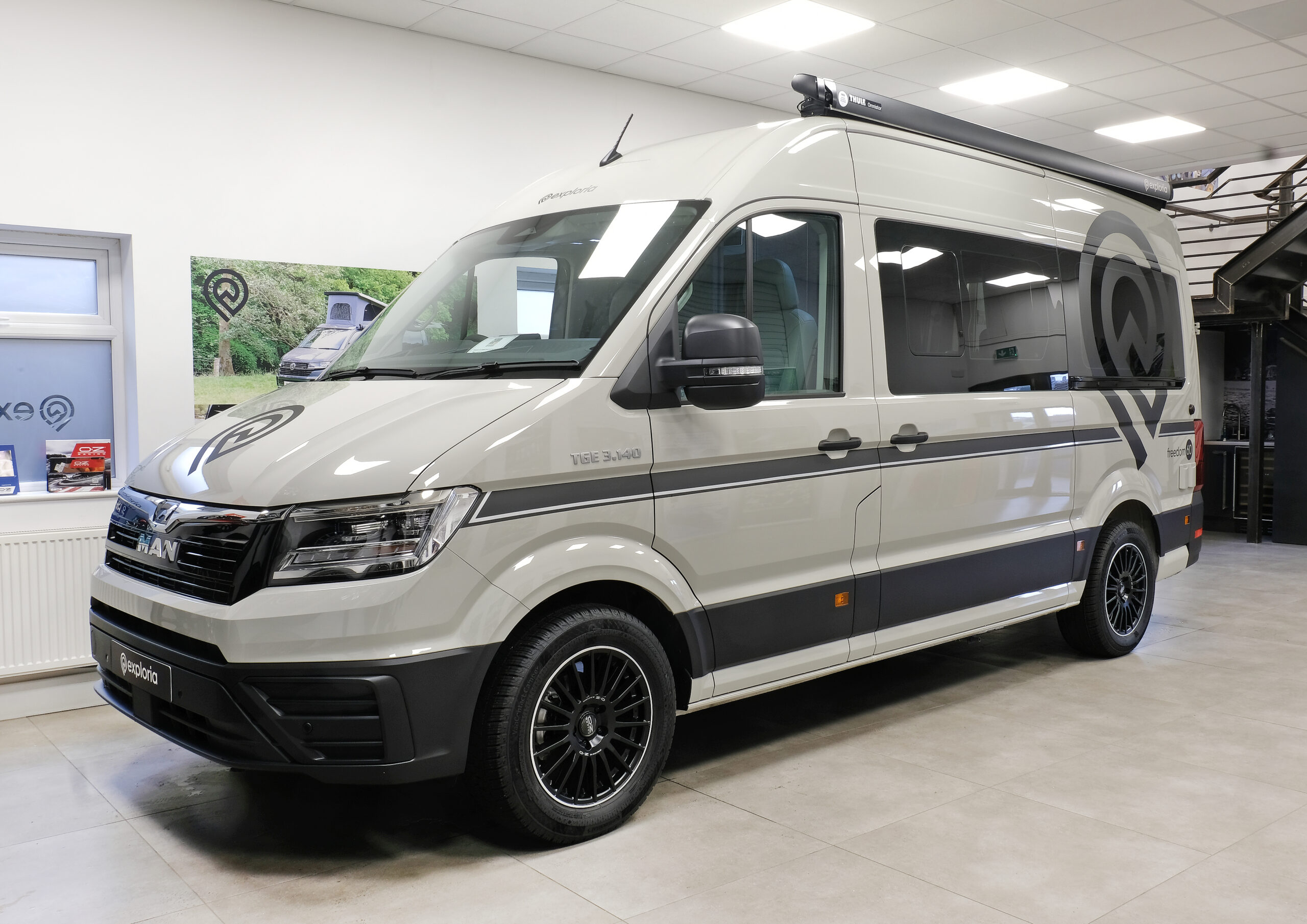

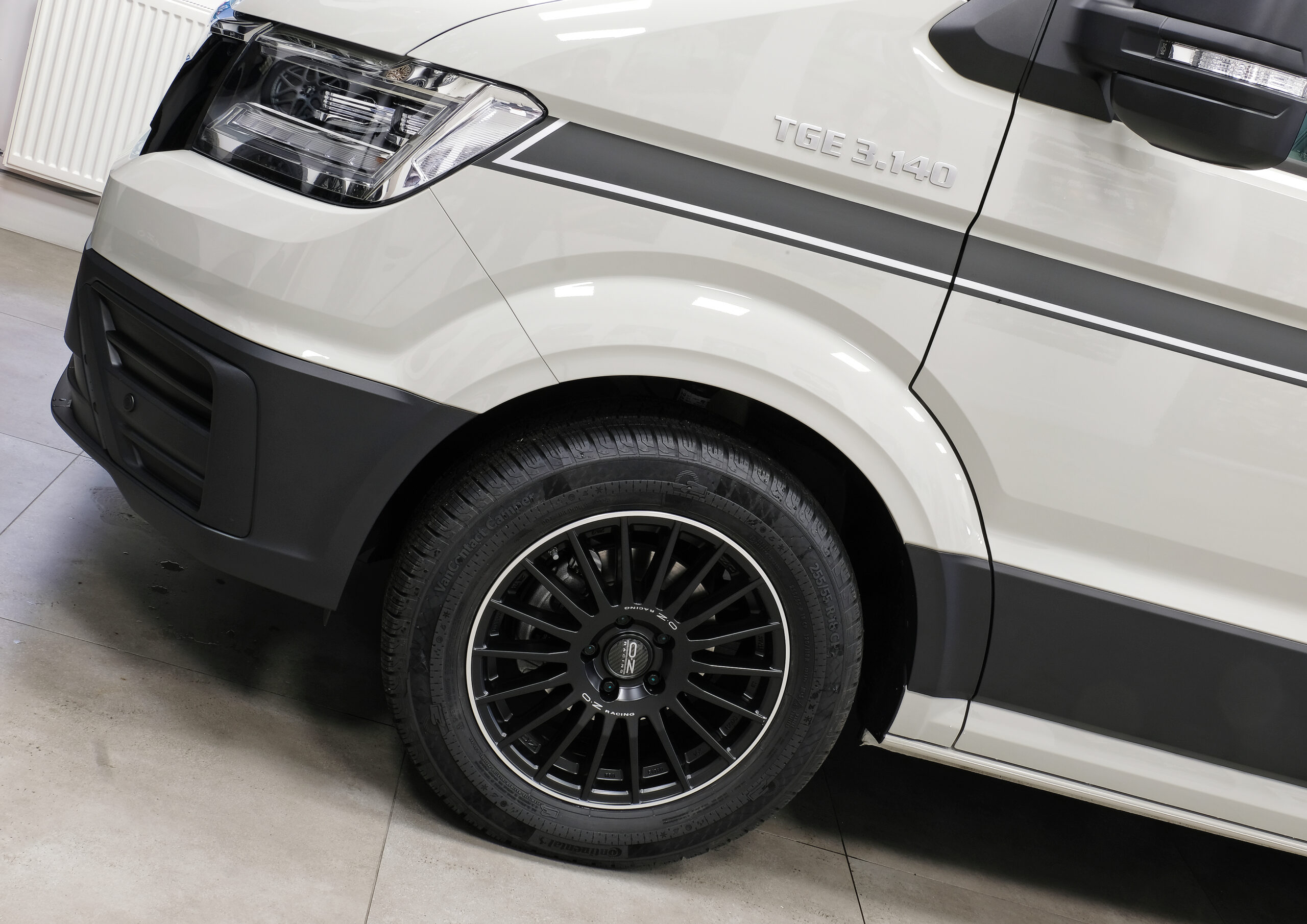

Exploria converts mainly new MAN TGE vehicles purchased from Exploria. We can help get you the best deal on the right van for your conversion. We are however also happy to convert on vehicles which are already customer owned.

Make an enquiry about the Freedom 60

Why not speak to our team to discuss all your conversion needs?
